Bad Boy implements
Bad Boy 1022
From $12,117.00
Unit price per1022
- FEATURING:
- 22 HORSEPOWER
- 617 LBS. LOADER LIFT CAPACITY AT PINS
- HYDRO MAX TRANSMISSION
- TREADLE STYLE HST PEDALS
- REVERSE MOUNT ENGINE
- 2 RANGE TRANSMISSION
- INDEPENDENT PTO
- POWER STEERING
- SELECTABLE 4WD
- DIFFIRENTIAL LOCK
- 7 YEAR POWERTRAIN WARRANTY
PAYMENTS AS LOW AS
$180.00
PER MONTH*
1022 TRACTOR SPECS
Options MSRP Our Price
Tractor $16,523 $12,1171022 ENGINE
- ENGINE
- 3 CYLINDER, WATER-COOLED, DIESEL
- ENGINE HP @ RPM
- 21.5
- DISPLACEMENT (IN.)
- 60.6
- NUMBER OF CYLINDERS
- 3
- FUEL TANK (GAL.)
- 6.6
1022 DRIVETRAIN
- TRANSMISSION
- HST
- NUMBER OF SPEEDS
- 2 RANGE
- CLUTCH
- DRY SINGLE PLATE
- BRAKES
- WET, MULTI-DISC
1022 HYDRAULICS
- TYPE
- POWER ASSISTED HYDRO-STATIC
- TOTAL HYDRAULIC FLOW (POWER STEERING + IMPLEMENT)
- 6.3 (2.1+4.2) / 23.8 (8+15.8)
- 3-POINT HITCH
- LIMITED CAT 1
- REAR REMOTE VALVE
- OPTIONAL (UP TO 1)
- 3-POINT HITCH LIFT CAPACITY @ 24" BEHIND LIFT POINT (LBS.)
- 679
1022 DIMENSIONS
- OVERALL LENGTH
- 94.2"
- OVERALL WIDTH
- 44.5"
- OVERALL HEIGHT
- 86.6"
- WHEELBASE
- 53.1"
- MINIMUM GROUND CLEARANCE
- 8.3"
- WEIGHT
- 1,433 LBS.
1022 PTO
- TYPE
- INDEPENDENT
- REAR (MID) PTO SPEED
- 540
- PTO HP
- 15.4
1022 ELECTRICAL
- BATTERY
- 12 V, 425 CCA
- ALTERNATOR
- 12 V, 40 A
1022 WHEELS & TIRES
- IND (FRONT)
- 18X8.50-10
- IND (REAR)
- 26X12-12
1022 LOADER - MODEL BBL100
- STANDARD BUCKET SIZE (IN.)
- 48
- MAXIMUM LIFT HEIGHT (IN.)
- 72.7
- DIG DEPTH (IN.)
- 4.0
- LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.)
- 617
- BREAKOUT FORCE (LBS.)
- 1,253
- SHIPPING WEIGHT (LBS.)
- 438
1022 BACKHOE - MODEL BBH100
- STANDARD BUCKET SIZE (IN.)
- 12
- TYPE
- SUBFRAME-MOUNTED, QUICK ATTACH
- MAXIMUM DIG DEPTH (IN.)
- 66
- DIG FORCE BUCKET (LBS.)
- 1,975
- SHIPPING WEIGHT (LBS.)
- 747

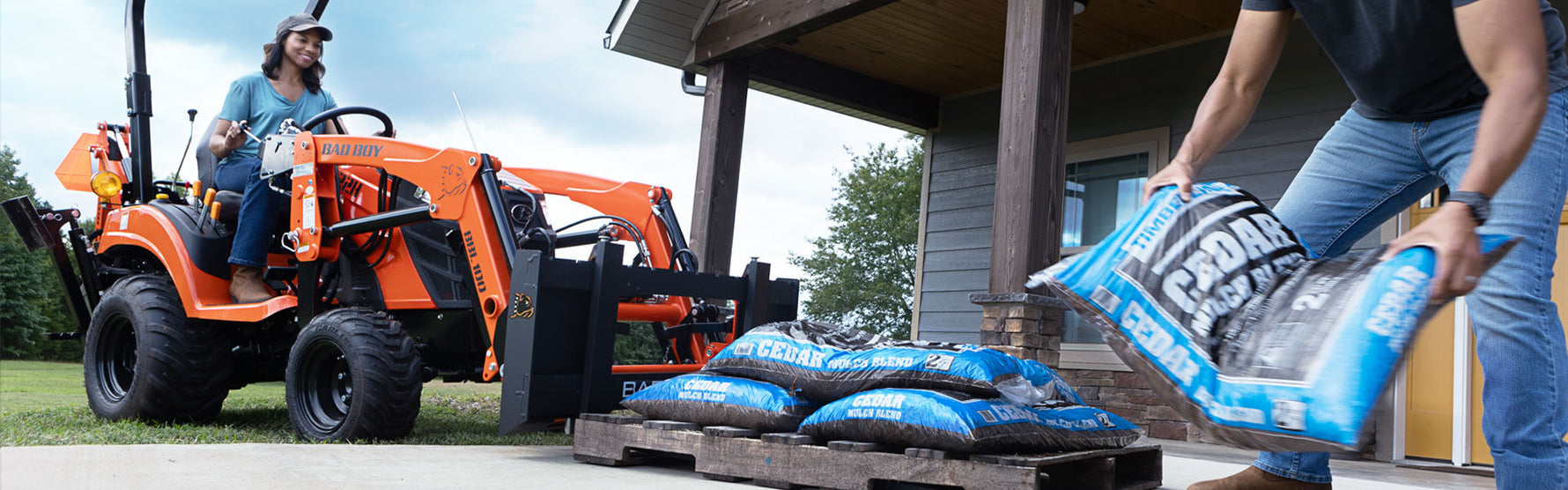

THE PERFECT FIT
The 1022 can get down and dirty with the best of them. This entry to our subcompact tractor lineup is perfect for small property owners. Get where other tractors can't and help you work with an attitude.
POWER AND PERFORMANCE
The clean, Tier 4 Certified quiet and powerful diesel engine boasts 22 horsepower. This tractor offers over 600 pounds of lift capacity, while the hydrostatic power steering makes getting around easy and effortless.
GET OPTIONAL MID-MOUNT MOWER DECK
We're bringing the legendary mower deck strength found on our commercial-grade mowers to the 1022. The easy-to-mount, drive-over deck features a width of 54˝ and cutting height adjustment from 1˝ to 4˝ for a precise mowing performance.
In-store purchase only
This item isn’t available to buy online. Call 217-582-2299 or contact us and we’ll take care of you.
